HIPHOTONICS Fiber Optic & Power Drop Cable is a hybrid communication cable that integrates optical fiber transmission and DC power supply into one compact cable. It is designed for FTTH, Smart Home, IP Camera, Wireless AP, Small Cell, IoT Devices, PoE Extension, Security Systems, and other applications requiring simultaneous optical communication and low-voltage power transmission.

The cable combines one or more optical fibers with two copper power conductors inside a single LSZH jacket, reducing installation costs and improving deployment efficiency.

Features

Integrated optical fiber and power conductors

Compact drop cable structure for easy installation

Optional self-supporting or non-self-supporting design

Excellent flexibility and bending performance

Low Smoke Zero Halogen (LSZH) jacket

UV-resistant and flame-retardant materials available

Suitable for indoor and outdoor installation

Long service life with excellent environmental reliability

Customized conductor size and cable construction available

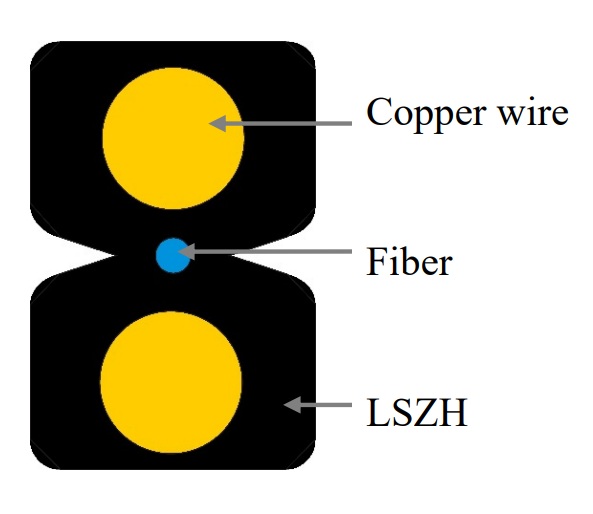

Cable Structure

Item Description

Optical Fiber G.657.A1 / G.657.A2 / G.652.D (Optional)

Fiber Quantity 1 Fibers (Customized)

Power Conductors 2 Copper Conductors

Copper Type Solid Copper or Stranded Copper

Outer Jacket LSZH / PE / TPU (Optional)

Cable Shape Flat Drop Cable

Power Conductor Options

The power conductors can be customized according to the customer's electrical requirements.

Available conductor types include:

Solid Copper Conductor

Stranded Copper Conductor

Tinned Copper Conductor (Optional)

Available conductor diameters:

Ø0.50 mm

Ø0.60 mm

Ø0.80 mm

Ø1.00 mm

Ø1.20 mm

Customized upon request

Electrical Characteristics

Parameter Specification

Rated Operating Voltage DC 56 V Max

Rated Operating Current 0.5 A Continuous

Conductor Resistance According to conductor diameter

Insulation Resistance ≥100 MΩ·km

Dielectric Strength According to IEC standards

Higher current or voltage ratings are available through customized conductor designs.

Optical Characteristics

Item Specification

Fiber Standard ITU-T G.657.A2 (Standard)

Optional Fiber G.652.D / G.657.A1

Operating Wavelength 1310 / 1550 nm

Maximum Attenuation ≤0.35 dB/km @1310nm

Maximum Attenuation ≤0.22 dB/km @1550nm

Mechanical Characteristics

Item Specification

Minimum Bending Radius 10× Cable Diameter (Static)

Installation Bending Radius 20× Cable Diameter

Tensile Strength Customized according to structure

Crush Resistance IEC Standard

Service Life ≥25 Years (Typical)

Environmental Characteristics

Item Specification

Operating Temperature -40°C to +70°C

Storage Temperature -40°C to +70°C

Installation Temperature -20°C to +60°C

Flame Rating IEC 60332-1

Halogen Free IEC 60754

Low Smoke IEC 61034

Available Cable Types

Non-Self-Supporting

Suitable for:

Indoor FTTH

Building Cabling

Equipment Interconnection

Security Systems

Data Centers

Self-Supporting

Integrated messenger wire available.

Suitable for:

Aerial Installation

Outdoor FTTH

Campus Networks

Industrial Parks

Smart City Projects

Typical Applications

FTTH Networks

Fiber to the Building (FTTB)

IP Cameras

Wireless Access Points

Smart Pole Systems

Industrial Ethernet

IoT Devices

Access Control

Smart Home Systems

Remote Power & Optical Transmission

Customization Options
