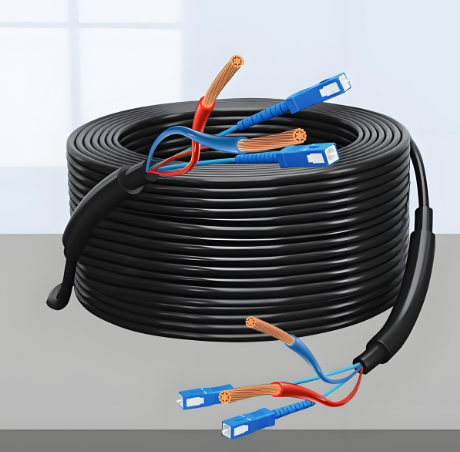

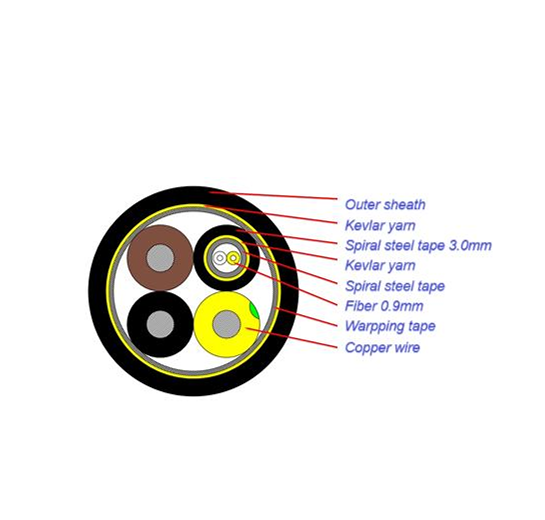

GJPFJKH-2B1-RV 3*16AWGThe optical cable structure is to wind a layer of spiral stainless steel wire armor on the surface of the 0.6mm tight-coated optical fiber, lay a multi-stranded aramid fiber outside the armor layer to play a strengthening role, and then extrude a PVC (or LSZH) outer sheath. The optical cable is twisted with wires and made into an optical-electric hybrid cable with an LSZH outer sheath.
0755-27662758
sales@hiphotonics.com

    Product features:
Combines optical fiber and electrical conductors in one cable, enabling simultaneous
transmission of data and power—ideal for remote monitoring, smart poles, or outdoor IoT
applications.
·High-strength aramid, high-performance sheath material for external protection
·Small bending radius, lightweight, soft, flexible, and easy to splice
 ·Excellent mechanical and environmental performance
·Flame retardant or non-combustible
sheath, providing good safety protection
Product applications:
·Various conventional connector products
·Tail fibers, cords
·Optical connections for optical devices, instruments, etc.
· Indoor horizontal wiring, vertical wiring within the building; LAN network, multi-information
point connection
· Long-distance, field, building wiring optical fiber mixed with cable duct, etc. Optical
connection
· Backbone network tail cable, equipment access to the building
| Optical properties: | |||||||
| B1.3 | B6A1 | B6A2 | A1b | A1am550 | |||
| Attenuation (+20℃) | 850nm | ≤3.5dB/km | ≤3.5dB/km | ||||
| 1300nm | ≤1.5dB/km | ≤1.5dB/km | |||||
| 1310nm | ≤0.4dB/km | ≤0.4dB/km | ≤0.4dB/km | ||||
| 1550nm | ≤0.3dB/km | ≤0.3dB/km | ≤0.3dB/km | ||||
| Bandwidth (Class A) | 850nm | ≥500MHZ·km | ≥500MHZ·km | ||||
| 1300nm | ≥600MHZ·km | ≥1000MHZ·km | |||||
| Numerical aperture | 0.275±0.015NA | 0.200±0.015NA | |||||
| Cut-off wavelength | ≤1260nm | ≤1260nm | ≤1260nm | ||||
| Optical cable performance | |||||||
| Optical cable model | indoor | GJPFJKJH-2B1-RV 3*16AWG | |||||
| Clad fiber size | mm | 0.6mm±0.1 | |||||
| Fiber model | SM | G657A2 | |||||
| Loose buffer | material | TPE | |||||
| Armored tube diameter | mm | 1.8±0.1 | |||||
| Armored tube material | / | SUS204 | |||||
| Weaving | / | w/o | |||||
| Strength member | Kevlar yarn | 4*1000D | |||||
| Inner sheath O.d | mm | 3.0±0.1 | |||||
| Inner sheath material | / | PVC | |||||
| Power wire elements | Material | Bare copper stranded wire | |||||
| Cross-sectional area | 16AWG | ||||||
| Q*OD(mm) | 7*0.5±0.01 | ||||||
| Insulation | Material | PVC | |||||
| Wall thickness Type mm | 0.76 | |
| Wall thickness Min mm | 0.69 | |
| Wire diameter(mm) | 3.0±0.15 | |
| color | Black, brown, yellow - green or customized | |
| Stranded conductor coating | Wrapping tape | 0.1±0.01mm |
| Reinforcement components | Kevlar Yarn | 12*1000D |
| Cable outer diameter | mm | 9.5±0.3 |
| Cable jacket material | / | LSZH |
| Cable sub - unit operating temp | °C | -20 - +70 |
| Operating temperature | °C | -15 - +70 |
| C weight | Kg/km | 115KG/KM (excluding packaging) |
| Jacket color | / | Black |
| Bending radius | mm | Dynamic 50D, Static 40D |
| Tensile strength | N | Long term300N; short term 800N |
| Compressive strength | N/10CM | Long term 1000N; short term 2000N |
