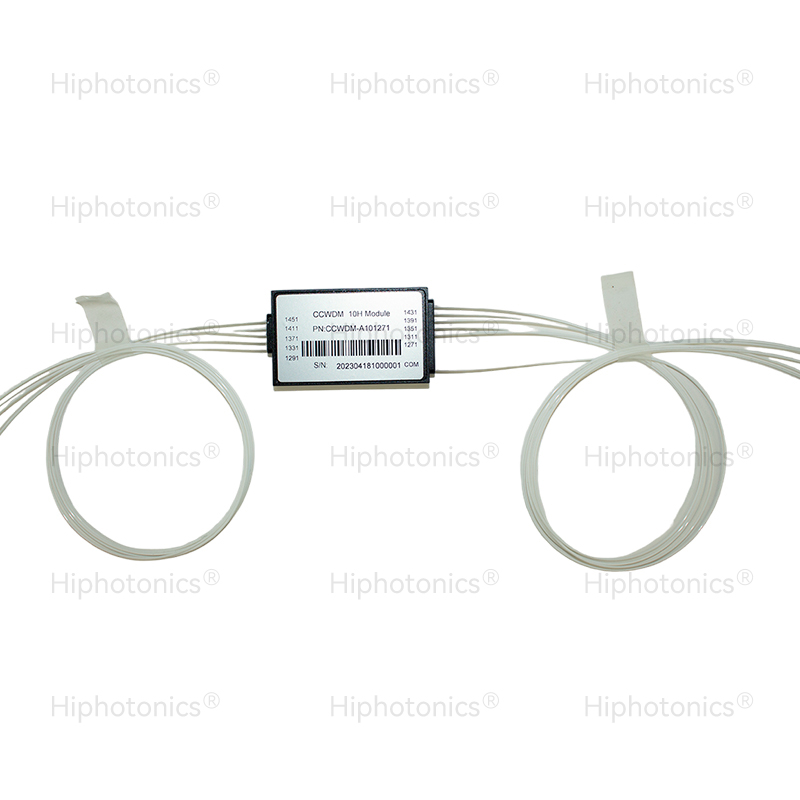

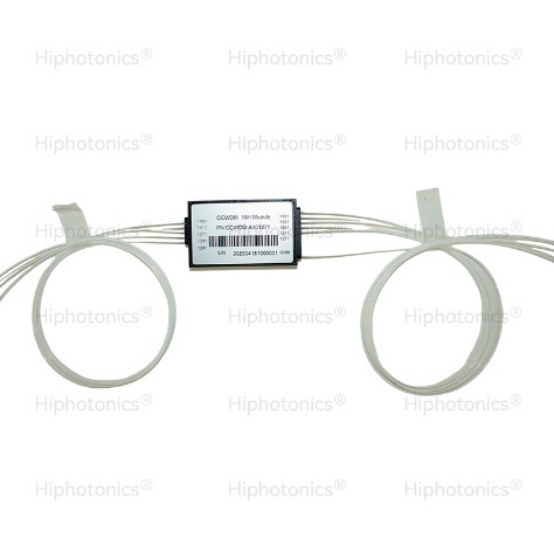

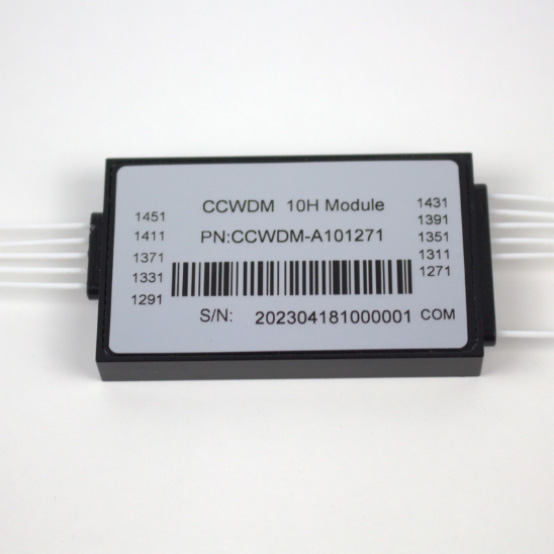

CCWDM module is a wavelength-division multiplexing technology based on TFF (thin-film filter). It functions in the same way as the CWDM module, but the main difference lies in the fact that CCWDM adopts free-space technology. This unique feature of the CCWDM module provides it with a whole range of benefits. Compared with the CWDM module, the size of the CCWDM module is greatly reduced, the insertion loss is lower, and there is better consistency. Therefore, it can replace CWDM products and be used in vast fields such as T-Center, Enterprise network, PON network, CATV, and others.
| Items | Unit | CCWDM Module | |||
| Channels | CH | 4 | 8 | 16 | 18 |
| Operating wavelength | nm | 1260~1620 | |||
| Transmission band | nm | ±6.5、±7.0、±7.5 | |||
| Transmission band insertion loss | dB | ≤1.3 | ≤1.6 | ≤1.9 | ≤2.4 |
| Transmission Adjacent Isolation | dB | ≥30 | |||
| Transmission Non-adjacent isolation | dB | ≥45 | |||
| Return loss | dB | ≥45 | |||
| Directivity | dB | ≥50 | |||
| Ripple | dB | ≤0.5 | |||
| Package dimension | mm | L50xW27xH7.7 or L50xW44xH7.7 | |||
| Operating temperature | ℃ | -25~+70 | |||
| Fiber type | 900μm loose tube | ||||
| Connector type | LC/UPC (or customize) | ||||
One of the key benefits of adopting CCWDM module is that it conforms to RoHS, which is the European legislation prohibiting the use of hazardous materials in electronic equipment for environmental reasons. Additionally, it complies Telcordia GR-1209 and GR-1221, which are the requirements for passive optic devices used in telecom networks.
CCWDM module of Hiphotonics is built in specialist workshops, with a wide monthly production capacity. Furthermore, the product's specifications can be adjusted, and its delivery time is reasonably fast. All items undergo dependability testing, guaranteeing that they meet all safety criteria for airline transportation. For comprehensive information about the product, kindly refer to the product specs.
The CCWDM module of Hiphotonics is a strong solution for numerous optical networking applications, with performance features that set it apart from the rest. Its original design, great durability, and remarkable performance make it perfect for use in telecommunications, television broadcasting, and several other industries.
