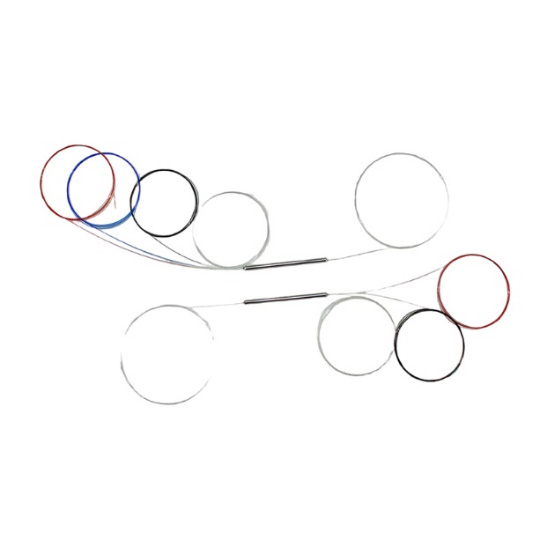

1.The Dual Window Single Mode Wideband Fiber Coupler 1x4 has a wideband capacity, so enabling effective operation over a wide spectrum of wavelengths. This function makes it quite flexible since it may be applied in many different fields.
2.High dependability: Design and manufacturing of this fiber coupler guarantees great dependability. Its performance in demanding surroundings has been tested thoroughly to ensure it.
3.Applications requiring high-performance fiber optic components will find the Dual Window Single Mode Wideband Fiber Coupler 1x4 to be a reasonably priced alternative. For companies trying to maximize their fiber optic network, its competitive pricing and performance appeal.
4.Easy installation of this fiber coupler saves time and effort by saving time and effort during installation. It is easily available for both skilled and inexperienced technicians since it does not call for any particular tools or equipment.
SDWFC4 Series | Specifications | Unit |
Wavelength Range | 1310±40 and 1550±40 | nm |
Fiber Type | Corning SMF-28 | |
Insertion Loss | Premium Grade A | |
≤ 7.1 ≤ 7.5 | dB | |
Directivity (Min) | 55 | dB |
Return Loss (Min) | 55 | dB |
TDL (Max) | Signal Path:< 0.20dB, Tap path:< 0.25dB | dB |
Maximum Power Handling | 500 | mW |
Operating Temperature Range | −20 ~ +75 | ℃ |
Storage Temperature Range | −40 ~ +85 | ℃ |
Package Dimensions | P1:250μm bare fiber ¢3.0×54 | mm |
P2:900nm loose tube ¢4.0×65 | ||
Qualifications | Telcordia GR-1221 |
1.Commonly employed in optical communication systems—including multiplexing and demultiplexing signals—the Dual Window Single Mode Wideband Fiber Coupler 1x4.
2.Applications include distributed temperature sensing (DTS), accelerometers sensors, strain sensors, and more can be found in fiber optic sensing.
3.Industrial Controls: Signal distribution and monitoring can be accomplished in industrial control systems with this fiber coupler.
4.Fiber optic endoscopes are among medical tools used in order to transmit and receive signals.
For a broad spectrum of fiber optic uses, the very dependable and reasonably priced Dual Window Single Mode Wideband Fiber Coupler 1x4 is Businesses trying to maximize their fiber optic network would find great value in this product given its wide application range, simplicity of installation, and great dependability. Available for a free sample request, all of our items have passed dependable examinations. Furthermore very high is our production capacity, which guarantees that we can provide the required quantity per client demand.
