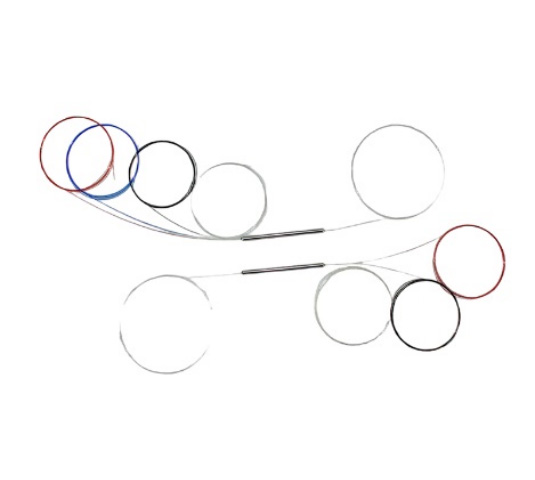

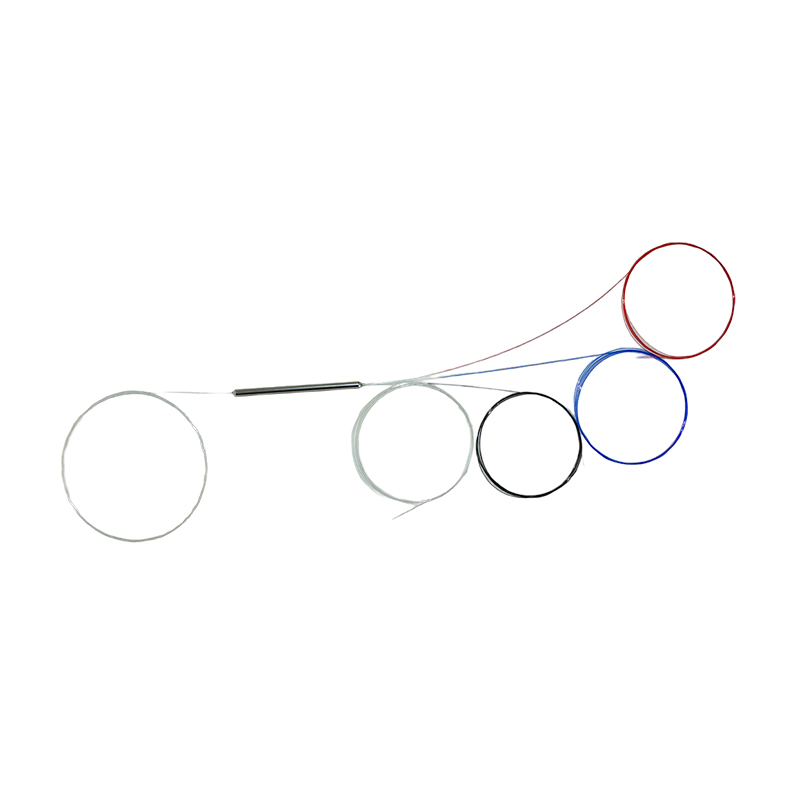

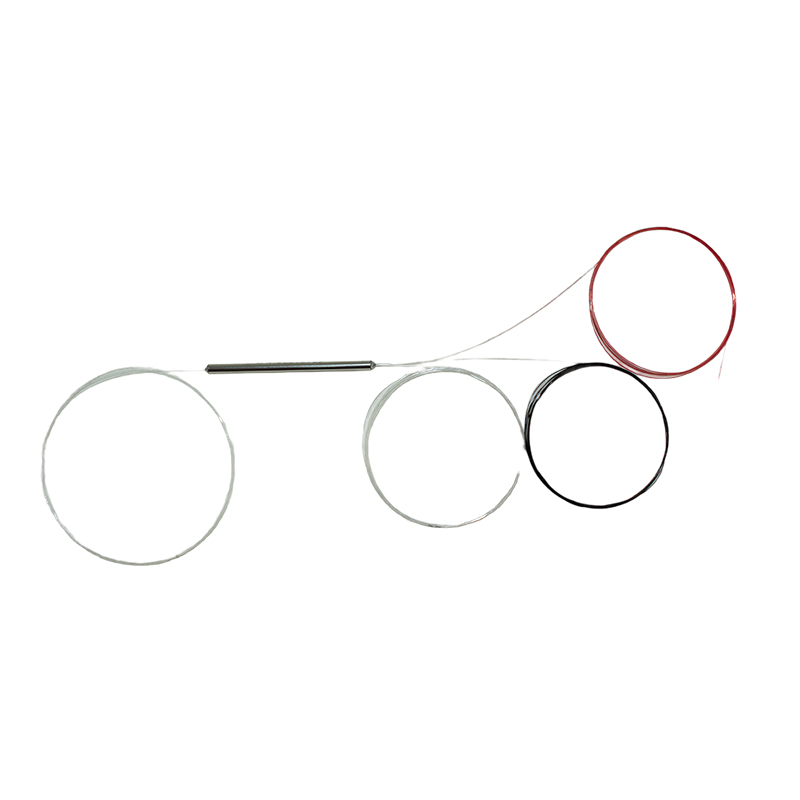

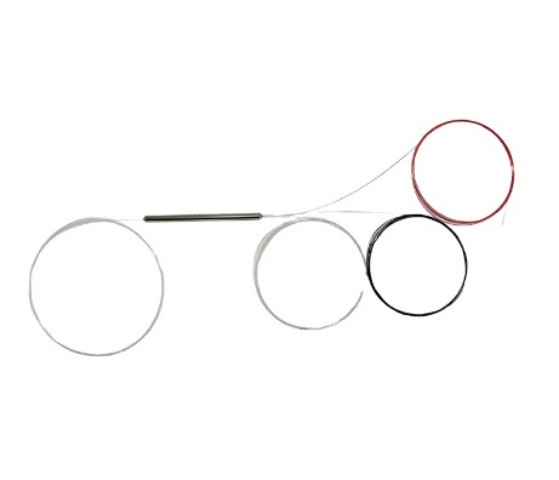

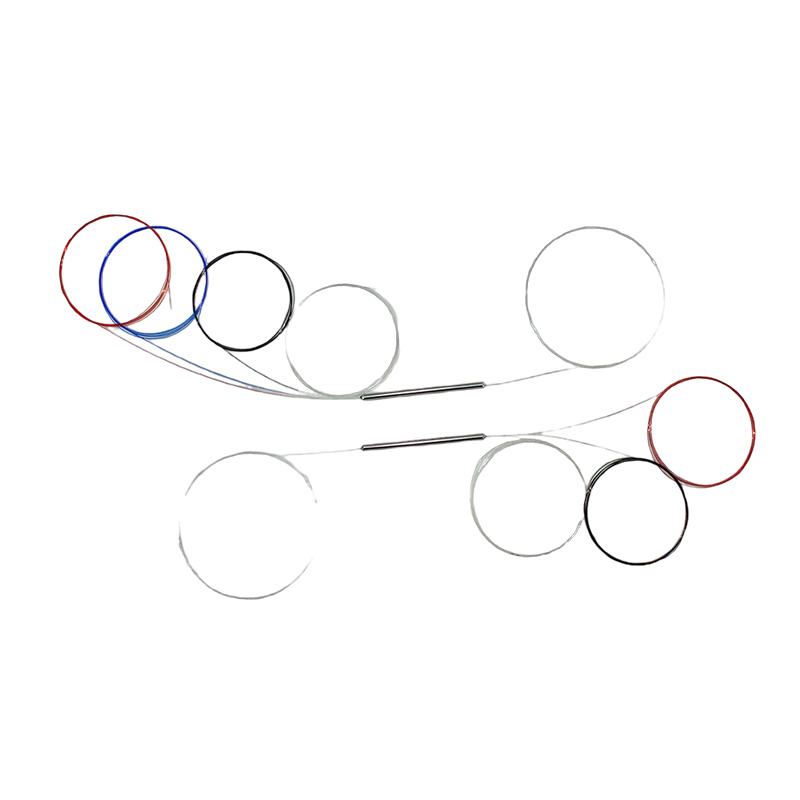

Dual window single mode wideband fiber coupler 1x3

0755-27662758

sales@hiphotonics.com

The dual window single mode wideband fiber coupler 1x3 is an essential element of contemporary optical communication systems. It is essential for distributing power across various channels, monitoring signals, and ensuring system stability.
Hiphotonics's dual-window single-mode wideband fiber coupler 1x3 exhibits minimal insertion loss, hence maintaining power loss at a negligible level, and features a low polarization-dependent loss (PDL), facilitating dependable performance in intricate optical networks.


SDWFC Series Specifications Unit
Wavelength Range 1310±40 and 1550±40 nm
Fiber Type Corning SMF-28 Ultra
Insertion Loss See Insertion Loss Table dB
Directivity (Min) 55 dB
Return Loss (Min) 55 dB
TDL (Max) Signal Path:<0.10db, tap="" path:=""> dB
Maximum Power Handling 1 W
Operating Temperature Range −40 ~ +75
Storage Temperature Range −40 ~ +85
Package Dimensions P1:250μm bare fiber ¢3.0×45 mm
P2:900nm loose tube ¢3.0×50
P3:3mm cable L90xW20xH10
Qualifications Telcordia GR-1221


The dependability of the coupler is crucial for the seamless functioning of the optical network. Hiphotonics's dual-window single-mode wideband fiber coupler 1x3 is constructed from premium materials and is evaluated to comply with the rigorous performance standards mandated in the industry. The component is engineered to withstand harsh circumstances, including elevated temperatures, vibrations, and shocks.

Applications for the dual window single mode wideband fiber coupler 1x3 are varied and include laboratory research and development among others. An indispensable instrument for data transfer and dissemination, the component also perfect for tracking optical signals in CATV and local area networks.

Modern optical communication systems depend on the dual window single mode wideband fiber coupler 1x3 absolutely vital component. Its low PDL, low insertion loss, great power handling, dependability, and adaptability fit a broad spectrum of uses in many different sectors. Dual window single mode wideband fiber coupler 1x3 will remain indispensable in the expansion of the optical communication sector as the demand for greater data transfer speeds and more bandwidths rises.

Leading producer of premium photonic goods with a significant manufacturing capacity is Hiphotonics. We promise to give our clients fast and effective delivery times so that you may get your goods right on. We also provide free product samples so you might try our goods before deciding what to buy. Get in touch now to feel our dedication to exceptional client satisfaction and excellence.
