Ultrahigh Density MTP/MPO Module Application in Data Processing Centres, Optical Access Network (OAN), Cable Television (CATV), Local Area Network (LAN)
In the world of optical fibre networks, ultrahigh density MTP/MPO module represents a fresh development. Optical access networks, data processing centres, cable television, and local area networks all make use of this module extensively. It is a dependable fix for management, installation, and maintenance of optical fibre networks.
|
Type
|
Wavelength
|
Module I.L Max
|
|
MTP-LC(MM)
|
850nm/1300nm
|
0.30dB
|
|
MTP-LC(SM)
|
1310nm/1550nm
|
0.40dB
|
|
MPO-LC(MM)
|
850nm/1300nm
|
0.50dB
|
|
MPO-LC(SM)
|
1310nm/1550nm
|
0.60dB
|
|
Material
|
ABS+PC
|
|
Color
|
Black
|
|
(front)Adapter type
|
LC DX (w/o flange) ×12Pcs
|
|
(front)Adapter color
|
Aqua: OM3/OM4; Beige: OM1/OM2 Blue: SM-UPC ; Green: SM-APC
|
|
(rear)Adapter type
|
MPO/MTP (Full flange/Opposed)
|
|
(rear)Adapter color
|
Black
|
|
Connector A
|
SM: LC-UPC,0.9mm or LC-APC,0.9mm MM:LC-UPC,0.9mm
|
|
Connector B
|
SM: MPO/MTP (male)-APC MM: MPO/MTP (male)-PC
|
|
Patch cord polarity
|
Type A
|
|
Weight
|
0.10kg
|
Features

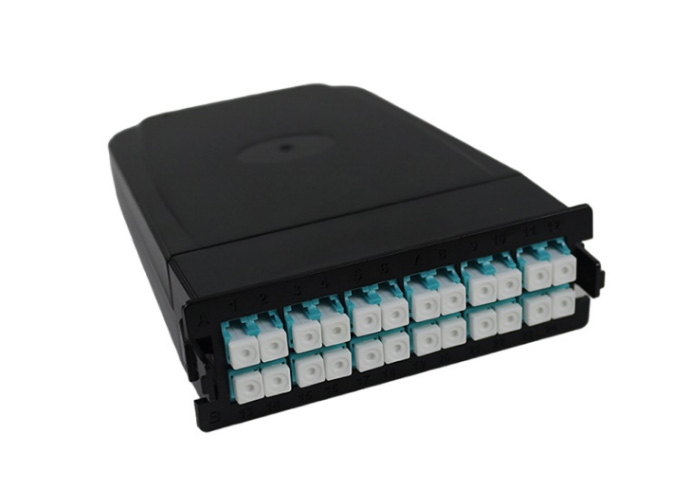

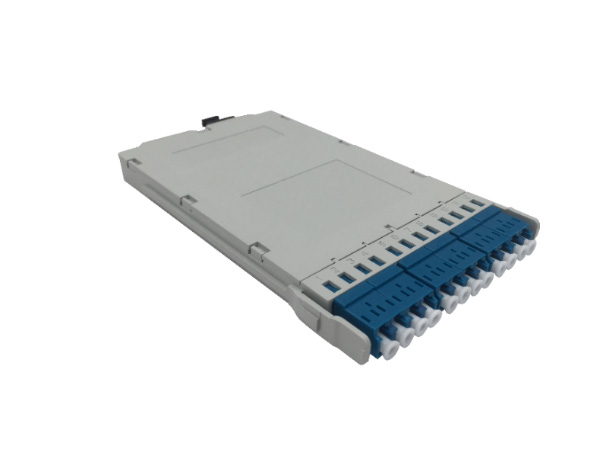

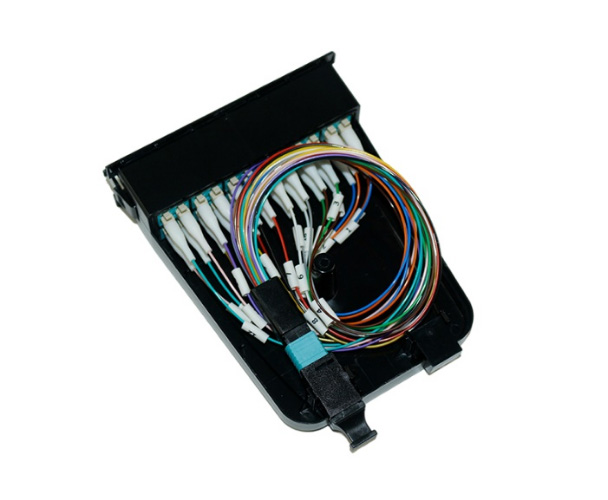

Strong and robust, the ultrahigh density MTP/MPO module is composed of premium cold-rolled steel sheet or ABS+PC. With 24 LC or 12 SC ports, the module offers a good way for high-density optical fibre connectivity. On site plug-and-play is simple with factory pre-terminated modules. Consumers can specify their particular needs and so adjust the material and parameter requirements. While our production workshop has fast delivery times and a great monthly capacity, it is quite professional and
maintaining great quality.
Product Specification
Designed to fulfil high-density optical fibre connectivity needs of optical access networks, data processing centres, cable television, and local area networks, the ultrahigh density MTP/MPO module Features of the module include:
High-quality cold-rolled steel sheet or ABS+PC makes up the module and offers strength and endurance.
2. With up to 24 LC or 12 SC connections, the module offers a practical answer for high-density optical fibre connectivity.
The pre-terminated module from the factory offers a plug-and-play option on site, therefore saving installation time.
4. Customising the module depends on material and parameter criteria.
Our production workshop assures high quality, short delivery times, and a great monthly capacity for output.
Reliable and effective for high-density optical fibre connectivity is the ultrahigh density MTP/MPO module. It is highly customisable to fit certain material and parameter needs and offers a plug-and-play solution on site, therefore saving installation time. With a big monthly production capacity, quick delivery time, and strong quality assurance, our production workshop is quite competent.
Our first concerns are our devotion to customer satisfaction and quality. We eagerly want to serve you since we are sure we can satisfy your needs.
