Optic Fibre Patchcord LC Bend from Hiphotonics Ideal for Data Centres and Comprehensive Cabling Systems
Designed for data centres in complete cabling systems, optical fibre cables of the Optic Fibre Patchcord LC Bend variety This is a customisable product fit for a broad spectrum of uses since it may be created to satisfy certain material and parameter needs.
| Parameters | Test Condition | Value | (dB) |
|---|---|---|---|
| Multimode | Single mode | ||
| Insertion Loss | 0.85/1.3um or 1.31/1.55um | ≤0.3 | ≤0.3 |
| Return Loss | 0.85/1.3um or 1.31/1.55um | ≥35 | ≥50 (APC≥60) |
| Interchangeability | Connect Randomly | <0.2<> | <0.2<> |
| Vibration | 5~50Hz, 1.5mm Amplitude | <0.1<> | <0.1<> |
| Tensile Strength | 0~15Kgf (0.9mm Exception) | <0.1<> | <0.1<> |
| High Temperature | +85℃, During 100 Hours | <0.2<> | <0.2<> |
| Low Temperature | -40℃, During 100 Hours | <0.2<> | <0.2<> |
| Temperature Cycle | -40℃~+85℃, during 5 Cycles | <0.2<> | <0.2<> |
| Humidity | +25℃~+65℃, 93%R. H, 100 hours | <0.2<> | <0.2<> |
Reliability tests performed by this product guarantees that it is a premium solution. It is produced in a professional workshop guarantees the best quality of every cable. Moreover, the manufacturing capability is really significant since big amounts are generated each month. The products can be provided fast, so facilitating the meeting of strict deadlines.

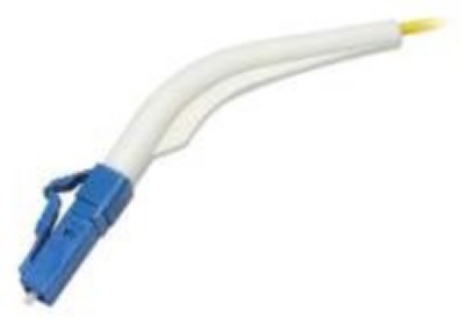

Optic Fibre Patchcord LC Bend is perfect for usage in places with limited space since of its bend-resistant construction. This construction guarantees that, during bending, the cable does not break or get damaged, thereby providing a dependable and long solution. Furthermore, this product comes in several lengths, which facilitates customising to particular needs.
The product can be manufactured to satisfy particular parameter criteria and comes in single-mode and multi-mode forms among other materials. This guarantees that it is a flexible and adaptable solution since it can be customised to satisfy the requirements of several uses.
The free sample and testing availability of Optic Fibre Patchcord LC Bend is among its outstanding features. Customers may thus observe personally the quality of the good before making a purchase. The business welcomes all questions and advises possible consumers to get in touch to learn more about this unique offering.
The LC Bend-Insensitive Patchcord is a great alternative if you search for a premium, customised fibre optic patchcord for data centre structured cabling. With choices for many lengths, materials, and specs, it provides dependability and durability. There are free samples available for testing, so assessing their fit for your requirements is simple.
Don't hesitate—get started by calling us right now!
