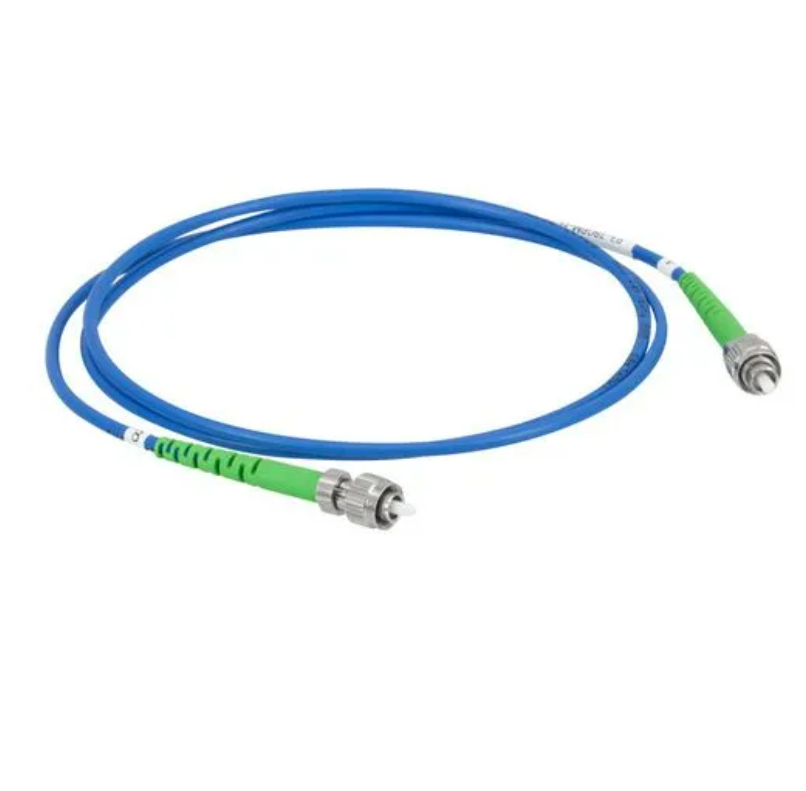

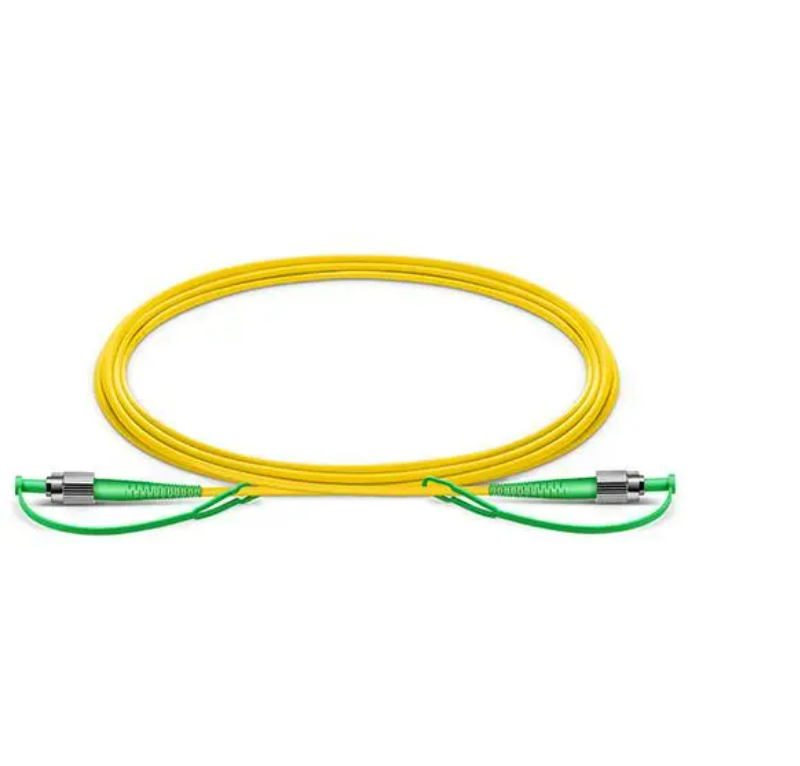

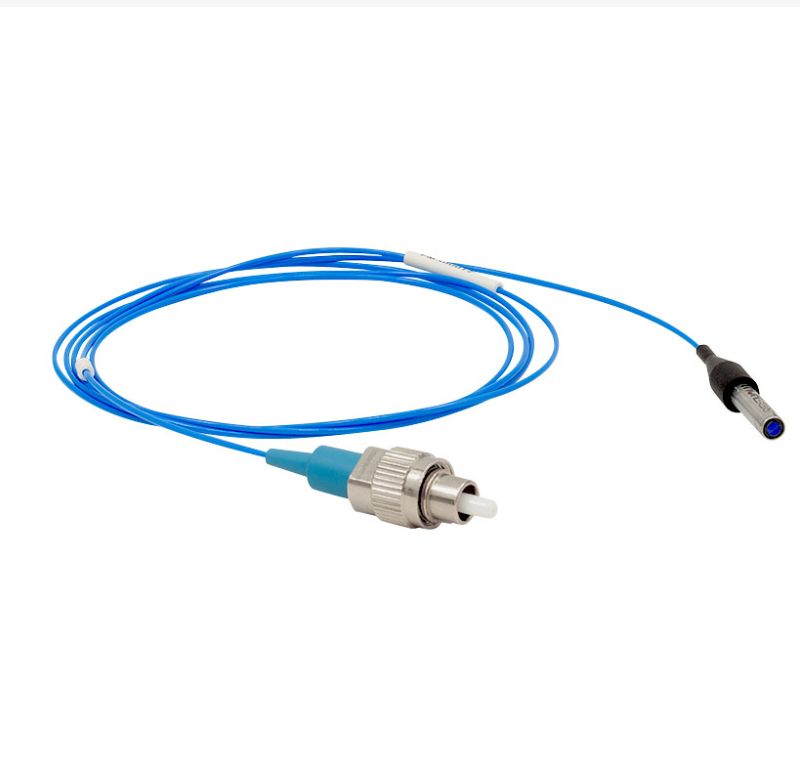

Polarism Preserving A premium fibre optic cable, Fibre Patchcord FC can keep light's polarisation intact across the cable. This cable is made to carry low insertion loss and great isolation of laser light. It is perfect for use in projects needing great dependability and accuracy.

- Telecommunications.

- Aerospace.

- Industrial automation.

- Military and defense.

- Medical devices.

- Research.

Parameters	Unit	Values
Wavelength	nm	980*, 1064*, 1310, 1480 or 1550
Connector type		FC/UPC & SC/UPC FC/APC & SC/APC
Key Orientation		Slow Axis
Axis Alignment	deg	± 3
Typ. Insertion Loss	dB	0.3 0.4
Max. Insertion Loss	dB	0.5
Min. Return Loss	dB	50 60
Min. Extinction Ratio	dB	23
Max. Optical Power (CW)	mW	300
Max. Tensile Load	N	5

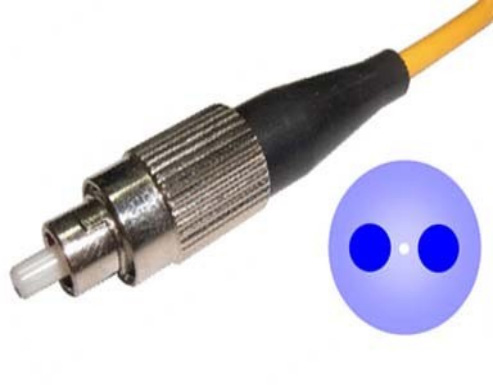

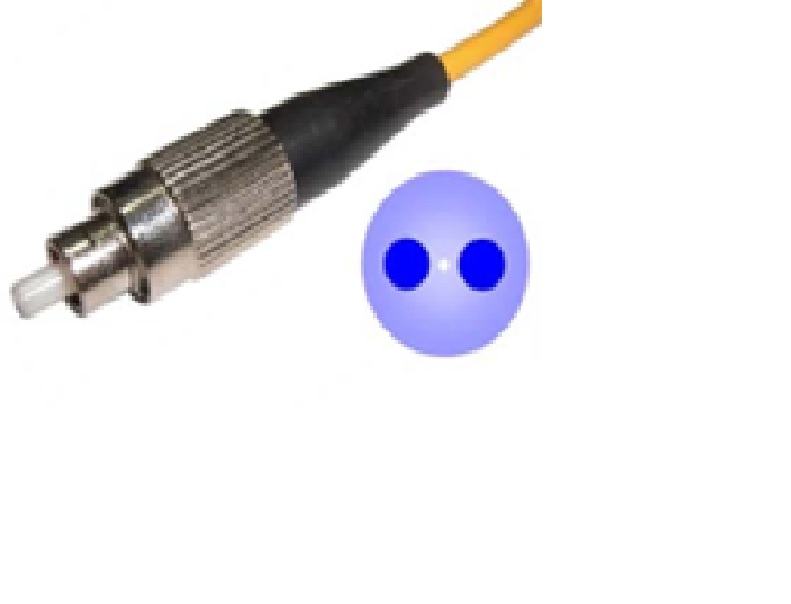

Fiber Type		PM Panda Fiber
Fiber Length Tolerance	%	± 10
Operating Temperature	℃	-5 to +70
Storage Temperature	℃	-40 to +85

- Customizable material and parameter requirements.

- All products pass reliability testing.

- Professional workshop ensures high-quality products.

- Large monthly production capacity and fast delivery times.

- Free sample testing.

- Guaranteed quality.

Businesses in a variety of sectors would find considerable value in the Polarisation Maintaining Fibre Patchcord FC. It is a common choice for telecommunications, aircraft, industrial automation, military and defence, medical equipment, and research since it can keep polarisation and broadcast laser light with great accuracy. To find out more about our tailored material and parameter needs and to ask for a free sample for testing, get in touch right now.

Ordering Information
PMFP-①①-②-③③-④-⑤

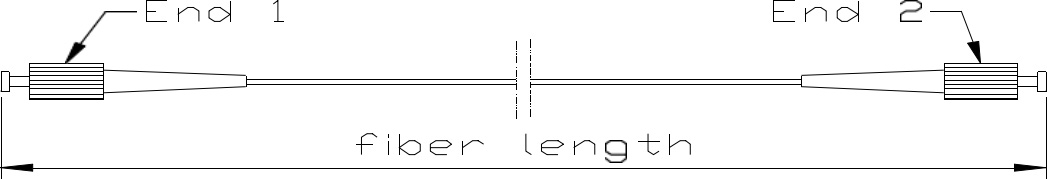

①①: Wavelength	③③: Connector Type on End 1 & 2	④: Fiber Jacket
55 - 1550nm	1 - FC/UPC	B - 250um Bare Fiber
48 - 1480nm	2 - FC/APC	D - 400um Bare Fiber
31 - 1310nm	3 - SC/UPC	L - 900um Loose Tube
06 - 1060nm	4 - SC/APC	T - 900um Tight Buffer
98 - 980nm	N - None	C - 3mm Cable
S - Specify	S - Specify	S - Specify
②: Key Width (for FC Connector) R - 2.02mm		⑤: Fiber Length 1 - 1.0m S - Specify
