| ITEMS | Unit | Parameters | NOTES | ||
|---|---|---|---|---|---|
| Min. | Max. | ||||
| Channel spacing |
Port IN1/IN2 OUT1/OUT2 |
GHz | 100 | ||
| Port IN/OUT | GHz | 50 | |||
| Channel central frequency | THz |
C - Band: 191.125 |
196.1 | ||
| Insertion Loss | dB | 2.8 | |||
| Insertion loss uniformity | dB | 0.5 | |||
| Bandwidth @ - 0.5dB | GHz | ±8 | |||
| Isolation (only for DEMUX) | dB | 25 | |||
| Ripple over 0.5dB passband | dB | 0.5 | |||
| PDL | dB | 0.5 | |||
| Return Loss | dB | 40 | |||
| PMD | ps | 0.2 | |||
| Fiber length | mm | 500±20 | All ports | ||
| Connector type | FC/UPC | ||||
| Operating Temperature | - 15°C | +75°C | |||
| Storage Temperature | - 40°C | 85°C | |||

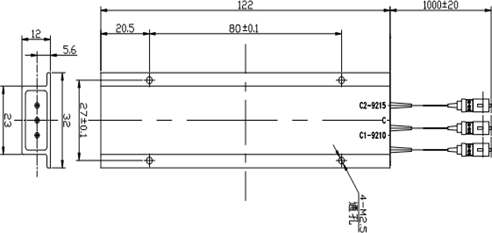

| Package Dimension | mm³ | 122×32×12 | |||
A professional workshop with a high monthly capacity and quick delivery periods manufactures our items. To guarantee that our customers receive only high-quality products, we evaluate their reliability before shipping. Our products are guaranteed to be of the finest quality and we take great pride in their reliability.
Please see the product specs document for further information on the detailed requirements and specifications of the product. We strive to produce high-quality items that satisfy our clients' expectations, and we guarantee that the products we deliver will meet or beyond your precise specifications.
